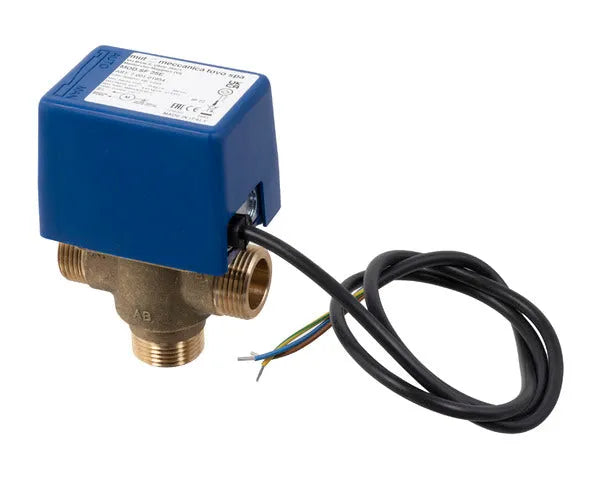

MUT 3-way zone valve SF 25E 1''m

Save 10%

Price:
Sale price144,19€ Regular price160,21€
Stock:
In stock

Description

Take advantage of the MUT SF 25E 3-way zone valve, an essential component for heating and sanitary water systems. Designed to offer precise and efficient control, this valve ensures optimal performance in various installations. Its robust construction and advanced features make it the ideal choice for professionals seeking reliability and durability.

  • Operated by electric motor with two operating positions.
  • Option of one or two auxiliary switches.
  • External lever for manual shutter positioning.
  • Versatile pipe connection system via flanges.
Characteristic Detail
Kvs 12.6 m³/h
Max differential pressure 0.63 Kg/cm² (61.8 KPa)
Power supply 230V 50Hz (24V, 110V options)
Power consumption 6W
Protection degree IP 22 (IEC 529 Standard)
Auxiliary switch 3A, 250 V a.c.
Nominal pressure PN 10
Fluid Installation water
Fluid temperature +5°C to 110°C
Max ambient temperature 60°C
Opening time 20s (2-way) / 8s (3-way)
Closing time 6s
Cable length 1000 mm
Valve body Brass
Cover Painted die-cast aluminum
Shutter Brass
Shutter shaft Stainless steel
Sealing rings EPDM
  • As a two-way zone valve in zoned installations.
  • As a three-way zone valve with recirculation for more precise regulation.
