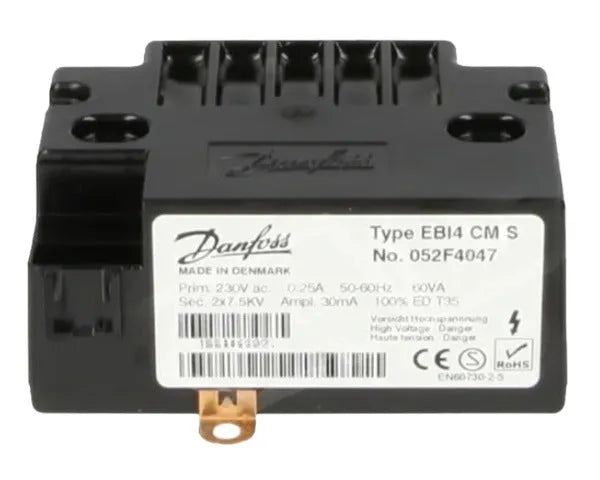

DANFOSS BURNER TRANSFORMER EBI4 CMS | 052F4047

Save 10%

Price:
Sale price160,39€ Regular price178,21€
Stock:
In stock

Description

This ignition transformer is designed to ensure reliable and efficient ignition in gas and diesel burners. Its compact and robust design makes it an ideal replacement for heating systems. Designed to guarantee reliable and efficient ignition of gas and diesel burners. Compact and robust. Does not include connector cable 052F5054 (057.00.0061).

Feature Value
Gross weight 0.344 Kilogram
Net weight 0.342 Kilogram
Volume 0.391 Liter
Type EBI4 CM
Product group Ignition Units
Ambient temperature [°C] [max] 60 °C
Ambient temperature [°C] [min] -10 °C
Approval CE
UKCA
CE mark Yes
China RoHS compliance Yes
Contains batteries No
Description EBI4 SERVICE #3
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(c)
7(c)-I
Grade of enclosure primary IP40
Housing Standard
Main fuse [A] [Min] 10 A
Packing format Single pack
Power consumption [VA] 60 VA
Primary current [A] 0.25 A
Primary frequency [Hz] 50/60
Quantity per packing format 10 pc
REACH Candidate List substances Lead (CAS no. 7439-92-1)
SCIP dossier no. 9bbbc11e-e994-4b41-a315-907e4ca9cc5d
SCIP dossier product name Ignition unit EB14
Secondary connection short circuit current [mA]
Secondary peak voltage [kV] 2 x 7.5
Storage temperature [°C] [Max] 85 °C
Storage temperature [°C] [Min] -25 °C
Supply voltage [V] AC 230 V
Supply voltage [V] AC [max] 255 V
Supply voltage [V] AC [min] 187 V
UL mark No.
  • EBI4 C series
  • EBI4 SERVICE #3
  • 052F0052
  • 052F0070
  • 052F0071
  • 052F0077
  • 052F4034
