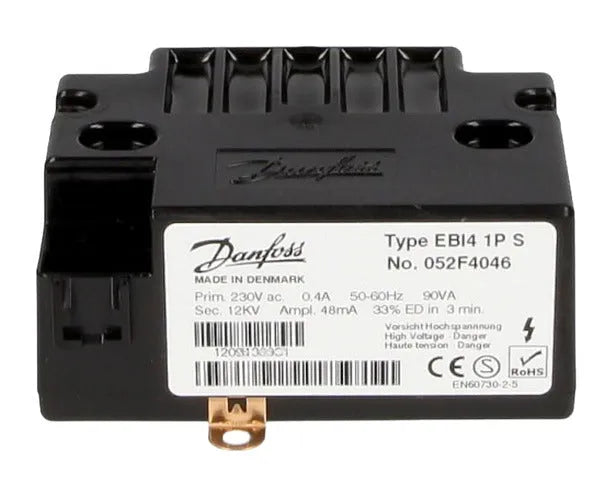

DANFOSS Burner Transformer EBI4 1PS | 052F4046

Save 10%

Price:
Sale price165,32€ Regular price183,70€
Stock:
In stock

Description

The product is a DANFOSS diesel burner transformer Model: EBI4 1P S. It is used for intermittent ignition between 2 electrodes or 1 electrode and the frame in small and medium-sized oil or gas burners. Without cable (ref 057.00.0061).

Feature Value
Gross weight 0.344 Kilogram
Net weight 0.296 Kilogram
Volume 0.391 Liter
Type EBI4 HP 1P
Product group Ignition units
Product line 02
UL approved No
Quantity per packaging format 10 pcs.
Housing Standard
EU RoHS exemption clause 6(c)
7(c)-I
Secondary connection
Short-circuit current 48 mA
China RoHS compliance Yes
EU RoHS compliance Yes with exemptions
Power consumption 90 VA
Contains batteries No
Main current 0.4 A
Description EBI 4 1P SERVICE # 2
Packaging format Individual package
Main frequency 50/60 Hz
Main fuse [Min] 10 A
Main protection rating IP40
Approval CE
UKCA
CE marking Yes
SCIP dossier number 9bbbc11e-e994-4b41-a315-907e4ca9cc5d
Product name in SCIP dossier Ignition unit EB14
Substances from the REACH candidate list Lead (CAS no. 7439-92-1)
Ambient temperature [Max] 60 °C
Ambient temperature [Min] -10 °C
Storage temperature [Max] 85 °C
Storage temperature [Min] -25 °C
Supply voltage 230 V
Supply voltage [max.] 255 V
Supply voltage [min.] 187 V
Secondary peak voltage 12 kV.
