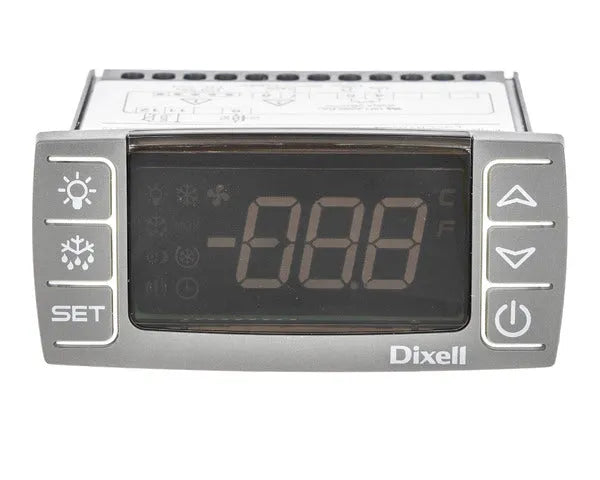

DIXELL DIGITAL THERMOSTAT XR20CX-5N0C1 1 RELAY

Save 10%

Price:
Sale price68,91€ Regular price76,57€
Stock:
In stock

Description

Digital thermostat with cyclic defrost designed for normal temperature refrigeration applications. Precise temperature control in cold storage rooms. Capability to manage the compressor and perform cyclic defrost. Allows connection of up to two PTC/NTC temperature sensors. Compatible with connection of an external X-REP display to the HOT-KEY connection.

Feature Detail
Housing self-extinguishing ABS
Case XR20CX front 32x74 mm; depth 60mm
Mounting XR20CX panel mounting in a 71x29mm panel cut-out
Protection IP20; Front protection: IP65
Connections Screw terminal block < 2.5 mm2 wiring
Power supply according to the model: 12Vac/dc, ±10%, 24Vac/dc, ±10%, 230Vac ±10%, 50/60Hz, 110Vac ±10%, 50/60Hz
Power consumption 3VA max
Display 3 digits, red LED, 14.2 mm high; Inputs: Up to 4 NTC or PTC probes
Digital input free voltage contact
Relay outputs compressor SPST (B) 20A, 250Vac or 20(8)A 250Vac
Data storage on the non-volatile memory (EEPROM)
Operating temperature 0÷60 °C (32÷140°F)
Storage temperature -30÷85 °C (-22÷185°F)
Relative humidity 20÷85% (non-condensing)
Measuring and regulation range NTC probe: -40÷110°C (-40÷230°F)
PTC probe -50÷150°C (-58÷302°F)
Resolution 0.1 °C or 1°C or 1°F (selectable)
Accuracy (ambient temp
25°C) ±1 °C ±1 digit
Additional Specifications from Contuaire Series/Model: XR20CX-5N0C1
Manufacturer Dixell
Dimensions 74 x 32mm
Power Supply 230V
Number of Inputs 2 (2xNTC, NTC/PTC)
Accuracy ±0.1 °C
Temperature Range -40 to +110 °C
Output 1 relay
Display 3 digits
Protection Class IP65
Weight 0.5 kg
Alarm Yes
Resolution 0.1 °C
Series XR20
Supply Voltage 230 V
Sensor Type 2xNTC, NTC/PTC.
  • Commercial refrigeration systems
  • HVAC systems
  • cold storage rooms.
