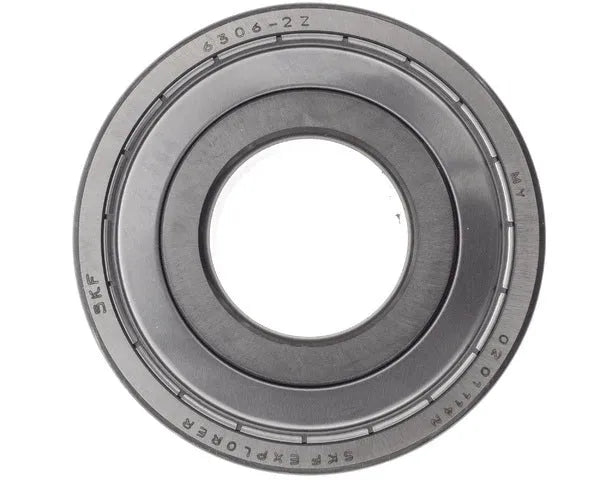

6306 ZZ Ball Bearing

Save 10%

Price:
Sale price7,88€ Regular price8,76€
Stock:
In stock

Description

This ball bearing is widely used in household appliances, garden machinery, outdoor vehicles, industrial production, robotics, tractors, and textile machinery. It is designed for maximum performance and to reduce friction. It is ideal for applications with higher load capacity. Installation by professionals and compliance with current regulations is recommended. It is an essential component for the proper functioning of a wide range of equipment, from household appliances to industrial machinery. Its robust design ensures optimal performance and a significant reduction in friction, extending the lifespan of your devices.

Feature Detail
Inner diameter (d) 30 mm
Outer diameter (D) 72 mm
Width (B) 19 mm
Dynamic load capacity, radial (Cr) 30,500 N (Schaeffler), 29,000 N (Adajusa)
Static load capacity, radial (C0r) 16,200 N (Schaeffler), 16,300 N (Adajusa)
Fatigue load limit, radial (Cur) 1,050 N (Schaeffler)
Limit rotational speed (nG) 13,700 1/min (Schaeffler), 9,500 min⁻¹ (Adajusa)
Reference speed (nBr) 10,500 1/min (Schaeffler)
Weight 0.342 kg (Schaeffler), 0.36 kg (Remle), 0.363 kg (Adajusa)
Material Standard bearing steel (Tuli-shop)
Material Hardened steel (Adajusa)
Cage Steel metal sheet (Schaeffler)
Seal Type ZZ (2Z) metal on both sides (Adajusa, Remle)
Seal Non-contact seal on one side (Schaeffler)
Tolerance class PN (Normal) (Schaeffler)
Others Dimensional thermal stabilization (120°) (Schaeffler)
Lubricant Sin (Schaeffler)
Radial bearing clearance CN (Normal internal clearance) (Schaeffler)
Hole type Z (Cylindrical) (Schaeffler)
Category C3 (Adajusa)
Minimum shaft shoulder diameter (da min) 37 mm
Maximum diameter of the housing shoulder (DA max) 65 mm
Maximum groove radius (ra max) 1 mm
Minimum chamfer dimension (rmin) 1.1 mm
Diameter of the outer ring shoulder (D1) 59.62 mm
Diameter of the outer ring gauge (D2) 61.58 mm
Diameter of the inner ring shoulder (d1) 44.6 mm
Minimum operating temperature (Tmin) -30 °C
Manufacturer FAG/GPZ/NSK.
Pack Weights (kg) and measurements (cm)
Unit Weight 0.36 kg, Length 7.00 cm, Height 1.70 cm, Width 7.00 cm
Bag Quantity 5, Weight 1.79 kg, Length 7.00 cm, Height 8.00 cm, Width 7.00 cm
Additional information from Adajusa Professional use material, install in compliance with the regulations in force at the installation site.
Type of Appliance Brands/Models
Washing machines (Bosch
Bauknecht
Whirlpool
LG
Arthur Martin Electrolux
Brandt
Samsung
Blomberg)
Refrigerators
Vacuum cleaners
Dishwashers
Dryers
Washer-dryers
Electric motors
Garden machinery
Outdoor vehicles
Industrial production
Robotics
Tractors
Textile machinery
