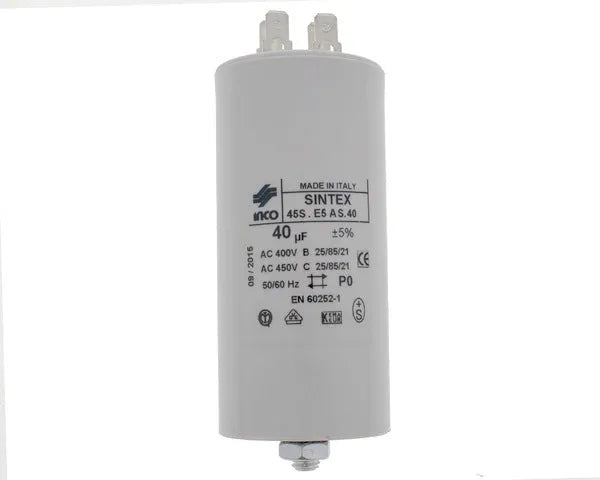

RUN CAPACITOR 40.0 µF 450V

Save 10%

Price:
Sale price11,03€ Regular price12,25€
Stock:
In stock

Description

Motor start capacitor. Polypropylene capacitor, typically for starting motors in household appliances (washing machines, dryers, dishwashers, etc.). Designed for use in a variety of electrical and electronic devices, including motors, generators, welding equipment, and pumps. Helps improve system efficiency by providing a stable and constant power source for component operation, which can result in greater durability and lower energy consumption. Professional-grade material; install in compliance with local regulations at the installation site. Before installation or handling, ensure the power is disconnected and the capacitor is discharged.

Feature Detail
Capacity 40 µF / 40uF / 40 microfarads
Operating/nominal voltage 450V / 450Vac / 400 VAC~50-60 Hz
Type Polypropylene
Dimensions Ø45 mm, h: 90 mm
Weight 0.1 kg / 0.14 kg
Frequency 50/60Hz
Operating temperature range -25ºC to +85ºC / -40º..+70ºC
Tolerance 5% / J: ±5%, K: ±10%
Dissipation factor (50-100 Hz, 20ºC) ≤0.002 / Tg δ ≤ 0.004
Insulation resistance >2000MΩxμF (20ºC, 500Vdc)
Test voltage Between armatures 2.15 × Vn for 2 s
Between terminals and casing 2500 VAC for 1 s / 1.75Un 2s
2000Vac 10s
Electrical endurance 400Vac: 10000h, 450Vac: 3000h, 500Vac: 1000h
Connection type Faston terminals 6.35×0.8 / 6.4x0.8mm terminals
Fixing Fixing screw M8×12 / threaded rod and M8x1.25mm nut
Standard distance between terminals 13.2±0.5 mm
Standard EN 60252
External construction Cylindrical container with PVC cover.
  • Electric motors
  • Washing machines
  • Dryers
  • Dishwashers
  • Water pumps
  • Air conditioners
  • Refrigerators
  • Air conditioning compressors
  • Synchronous alternators
