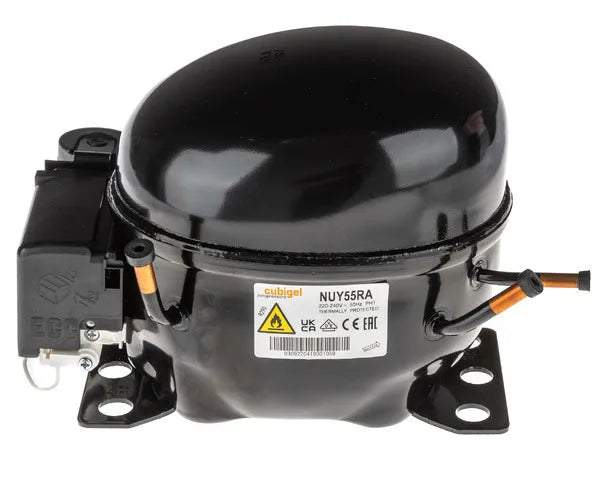

Compressor NUY55RAa R290 1/5 Cubigel

Save 10%

Price:
Sale price115,24€ Regular price128,05€
Stock:
Sold out

Description

The NUY55RAa R290 1/5 CUBIGEL Compressor is a high-efficiency hermetic compressor designed for refrigeration systems. Manufactured by CUBIGEL-HUAYI, this NUY55RAa model uses R290 refrigerant and is ideal for applications requiring reliable and sustainable performance.

  • Hermetic compressor CUBIGEL - HUAYI Model NUY55RAa (HMBP)
  • Refrigerant R290
  • Voltage 220-240V 50Hz ~1
  • Power 1/5 hp
  • Displacement 5.50 cm³
  • Application: High-Medium Back Pressure (HMBP)
  • Capillary/Valve Expansion
  • Fan cooling
  • Net weight: 9.50 Kg
  • Oil type: ISO VG 22 ESTER
  • Oil charge: 220 cm³
  • Motor type: CSIR
  • Number of phases: 1 PH
  • Voltage: 220-240V 50Hz ~1
  • Refrigerant: R290
  • Evaporating Temp: -25.0 °C to 10.0 °C
  • Max Ambient Temp: 43.0 °C
  • Displacement: 5.50 cm³
  • Diameter: 21.99 mm
  • Stroke: 14.50 mm
  • Net Weight: 9.50 Kg
  • Oil Type: ISO VG 22 ESTER
  • Oil Charge: 220 cm³
  • HP: 1/5 hp
  • Voltage Range: 187-255 V
  • Locked Rotor Amps (LRA): 12.60 A
  • Max Cont Current (MCC): 3.00 A
  • Main W Resist at 25C: 8.37 Ω
  • Start W Resist at 25C: 33.94 Ω
  • Nominal Performance ASHRAE:
    • Cooling Capacity: 669 kcal/h
    • COP: 2.69 W/W
    • EER: 2.31 kCal/Wh
    • Input Power: 289 W
    • Current: 1.77 A
  • Nominal Performance CECOMAF:
    • Cooling Capacity: 653 W
    • COP: 2.29 W/W
    • EER: 1.98 kCal/Wh
    • Input Power: 284 W
    • Current: 1.75 A
  • Electrical Components:
    • Starting Capacitor: 47-56 µF 330 V

Approved for R290 and R600a according to standards EN 60335-1 and EN 60335-2-34.

  • Light commercial applications
  • Replacement of R134a, R404A, and R22 in certain cases
  • Open display cases
  • Bottle coolers
  • Vending machines
  • High-quality and environmentally friendly products
  • Cutting-edge technology
  • Higher cooling capacity and COP
  • Energy savings with lower displacement
  • Does not directly contribute to global warming (GWP = 3)
  • Zero ozone depletion potential (ODP = 0)
