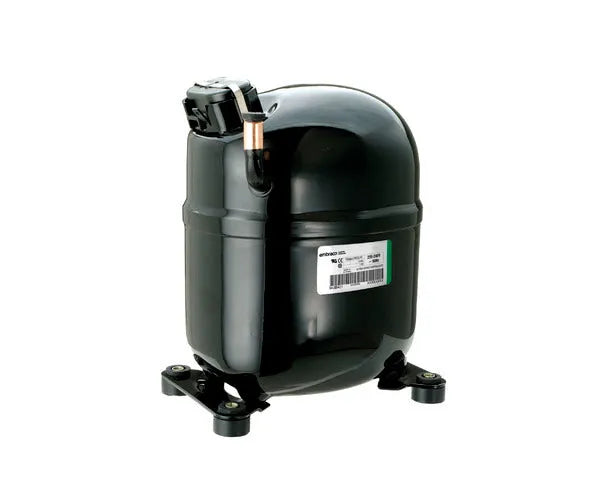

Compressor NJ9238GK_V R404 1 1/2 MHBP EMBRACO | 943RV1904VF

Save 10%

Price:
Sale price566,06€ Regular price628,95€
Stock:
In stock

Description

The EMBRACO hermetic compressor model NJ9238GK is a robust solution for refrigeration systems. Designed to operate with refrigerant R404A, it offers a power of 1 1/2 HP and an MHBP (Medium/High Back Pressure) application, ensuring efficient and reliable performance in various configurations.

n
Feature Value
Model NJ9238GK
Type Hermetic compressor
Refrigerant R404A
Power 1 1/2 HP
Voltage 220/240V 50Hz
Displacement 32.67cc
Application MHBP (Medium/High Back Pressure)
Diameter 41.77 mm (1.64 in)
Stroke 23.850 mm (.94 in)
Displacement 26.11 cc (1.994 cu. in)
Speed 3,500 rpm
Weight 21.5 kg (48.72 lb)
Oil charge 750 ml (25.36 fl. oz.)
Oil type POE ISO22
Motor 2 poles - 1 phase, CSR
Voltage range 187-244V
Run winding resistance at 25°C 1.23 Ω
Start winding resistance at 25°C 4.01 Ω
Locked rotor current 59 amps
FLA (MBP-60Hz) 10.25 amps
Start capacitor 130-156 μf/330 V
Run capacitor 30 μf/440 V
  • A: 10.9"
  • B: 7.05"
  • C: 8.81"
  • D: 8"
  • E: 4.8"
  • Compatible refrigerants: R134a; R513A; R290; R407C; R22; R404A; R448A; R449A; R452A
  • Temperature applications: Ultra-low, low, and medium
  • Direct access freezers
  • Cold storage rooms
  • Medical coolers
  • Self-service display cases
  • High reliability for demanding applications
  • Low noise and vibration levels
  • Suitable for high cooling demands
