Compressor ml80tb r404a 3/8 cubigel hmbp | XX

Save 10%

Price:
Sale price139,76€ Regular price155,28€
Stock:
In stock
Compatible with:

Description

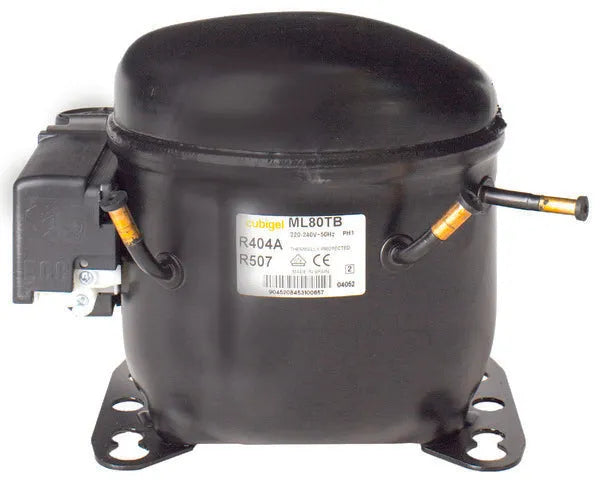

This CUBIGEL-HUAYI hermetic compressor model ML80TB is designed to optimize energy consumption and offer high efficiency in a wide range of refrigeration applications. It is ideal for high and medium back pressure (HMBP) refrigeration systems, including commercial refrigerators, freezers, and water chillers.

  • Compressor type: Hermetic
  • Refrigerant: R404A
  • Power: 3/8 hp
  • Voltage: 220-240V
  • Frequency: 50Hz
  • Displacement: 7.57 cm3
  • Application: HMBP (High/Mid. back pressure)
  • Motor type: CSIR
  • Oil type: ISO VG 46 ESTER
  • Oil charge: 400 cm3
  • Net weight: 11.4 Kg
  • Displacement: 7.57 cm3
  • Diameter: 25.4 mm
  • Stroke: 14.0 mm
  • Voltage range: 187-264 V
  • Locked rotor current: 12.8 A
  • Main winding resistance: 5.81 Ohm
  • Start winding resistance: 17.84 Ohm
  • Cooling capacity cycle c: 757 kcal/h
  • Cooling capacity cycle d: 950 kcal/h
  • Input power cycle c: 539 W
  • Input power cycle d: 555 W
  • EER cycle c: 1.40 kcal/Wh
  • EER cycle d: 1.71 kcal/Wh
  • COP cycle c: 1.63 W/W
  • COP cycle d: 1.99 W/W
  • Current cycle c: 3.02 A
  • Current cycle d: 3.09 A
  • Evaporation temperature: -25 to 10 °C
  • Maximum ambient temperature: 43 °C
  • Internal suction service diameter: 6.5 mm
  • Internal discharge diameter: 4.9 mm
  • Compatible refrigerants: R404A, R507
  • Applications: Commercial and domestic refrigeration, freezers, water chillers, ice machines, dehumidifiers
