Compressor GP14CG R134A 3/8 Cubigel LBP

Save 10%

Price:
Sale price154,53€ Regular price171,71€
Stock:
In stock

Description

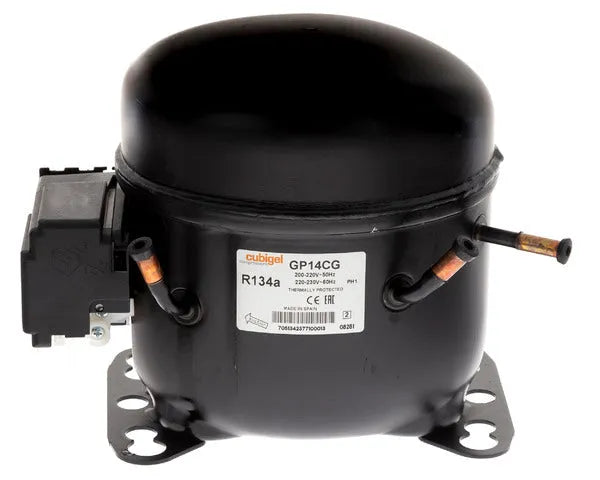

The hermetic compressor CUBIGEL-HUAYI model GP14CG R134A 3/8 LBP is designed for low back pressure (LBP) applications. It uses refrigerant R134a and operates at a voltage of 200-230V at 50/60Hz. Ideal for refrigeration systems requiring a nominal power of 3/8 hp.

  • Nominal Power: 3/8 hp
  • Refrigerant: R134a
  • Displacement: 14.17 cm³
  • Voltage/Frequency: 200-220/220-230V 50/60Hz ~1
  • Net Weight: 10.62 Kg
  • Oil type: ISO VG 32 ESTER
  • Oil charge: 400 cm³
Parameter Value
Cooling Capacity (ASHRAE) 310 kcal/h
COP (ASHRAE) 1.18 W/W
EER (ASHRAE) 1.02 kcal/Wh
Input Power (ASHRAE) 305 W
Current (ASHRAE) 2.00 A
Cooling Capacity (CECOMAF) 262 W
COP (CECOMAF) 0.91 W/W
EER (CECOMAF) 0.78 kcal/Wh
Input Power (CECOMAF) 289 W
Current (CECOMAF) 1.95 A
Evaporating Temperature (ASHRAE LBP B) -23.3 °C
Condensing temperature (ASHRAE LBP B) 55.0 °C
Liquid temperature (ASHRAE LBP B) 32.0 °C
Ambient temperature (ASHRAE LBP B) 32.0 °C
Suction temperature (ASHRAE LBP B) 32.0 °C
Voltage/Frequency (ASHRAE LBP B) 230 V 60 Hz
Evaporating temperature (CECOMAF LBP A) -25.0 °C
Condensing temperature (CECOMAF LBP A) 55.0 °C
Liquid temperature (CECOMAF LBP A) 55.0 °C
Ambient temperature (CECOMAF LBP A) 32.0 °C
Suction temperature (CECOMAF LBP A) 32.0 °C
Voltage/Frequency (CECOMAF LBP A) 230 V 60 Hz
Locked Rotor Amps (LRA) 17.20 A
Max. Continuous Current (MCC) 3.30 A
Main W. resistance at 25°C 5.28 Ω
Start W. resistance at 25°C 33.32 Ω
  • Compatible refrigerants: R134a, R1234yf
  • Application: Low Back Pressure (LBP)
  • Evaporating Temperature Range: -35.0 °C to -10.0 °C
  • Cooling: Fan cooled
