Description

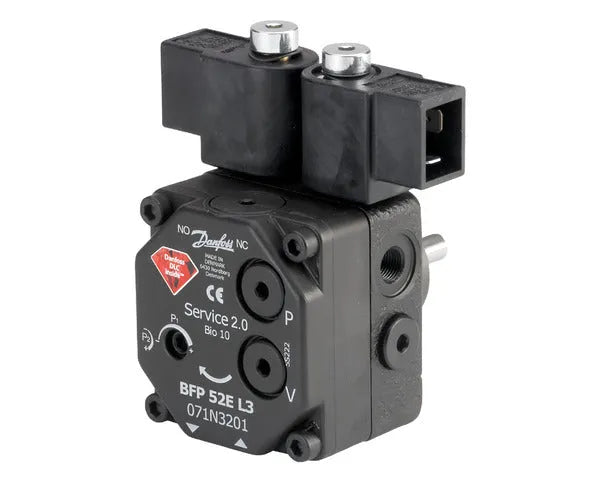

This DANFOSS diesel pump is an essential component for the proper operation of heating systems using diesel fuel. Designed to provide optimal performance and long service life, it ensures efficient and safe combustion. Ideal for replacing worn parts or improving your equipment's efficiency.

  • Two-stage diesel burner pump. Does not include pump connection cable 071G0200 (280.90.0122).
n
Feature Detail
Product type BFP 52
Biofuel blend 10
Rotation Left
Nozzle outlet/pressure Left
Coil voltage 220 - 230 V, AC
2 stages
7439-92-1)
Actuator type NC+NO
Maximum ambient temperature 70 °C
Minimum ambient temperature -20 °C
Approvals CE, UKCA, Intertek Semko, DIN CERTCO
Capacity 42.00 L/h
Capacity range 25-49 L/h
Maximum capacity range 49 L/h
Minimum capacity range 25 L/h
CE mark Yes
China RoHS compliance Yes
Shut-off function Cut-off
Coil consumption 9 W
Coil current AC
Contains batteries No
Definition point 2800 min-1, 10 bar, 4.3 cSt
Description BFP 52E L5L, SERVICE
EU RoHS compliance Yes with exemptions
EU RoHS exemption clause 6(a)-I, 6(c)
Factory pressure setting 10.0 bar
Factory pressure setting stage 2 13.0 bar
Filter area 11.0 cm²
Filter grade 200 µm
Filter type Cartridge
Flats/key on shaft 1 flat
Protection rating IP40
Material description BFP 52E L5L oil pump, 2 pipes
Maximum medium temperature 70 °C
Minimum medium temperature 0 °C
Type NO Use with coil NO
Number of stages 2
Oil pump speed 3450 rpm
Oil type Kerosene/Light oil
Packaging format Multipack
Pipe connection 2 pipes
Power consumption 75.0 W
Maximum pressure 25.00 bar
Minimum pressure 7.00 bar
Maximum feed line pressure 2 bar
Maximum kerosene pressure 12 bar
Maximum stage 2 pressure 25 bar
Product group Pumps
Product line Burner components
Quantity per packaging format 10 units
REACH candidate list substances Lead (CAS no
SCIP dossier number b9ccf2df-a60a-4db7-b88b-d72eb1f67887
SCIP dossier product name BFP oil pump - Service
Series BFP
Shaft diameter 8.000 mm
Maximum speed 3450 rpm
Minimum speed 1400 rpm
Maximum starting torque 0.12 N-m
Maximum storage temperature 70 °C
Minimum storage temperature -20 °C
Maximum suction line vacuum 0.4 bar
Maximum supply peak voltage 253.0 V
Minimum supply peak voltage 207.0 V
Supply voltage 230.0 V
Maximum supply voltage 230.0 V
Minimum supply voltage 220.0 V
UL Brand No
Maximum viscosity 12.0 cSt
Minimum viscosity 1.3 cSt
Gross weight 1.323 Kilograms
Net weight 1.254 Kilograms
Volume 1.971 Liters
Dimensions 13 cm (height) x 11 cm (width) x 14 cm (depth).
